Good Quality Complete Ketchup Production Line Tomato Paste Sauce Puree Concentrated Machine

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Engine	Weight:	300
Warranty:	3 Years	Applicable Industries:	Fruit Deep Processing
After-sales Service Provided:	Overseas Service Provided	Voltage:	380V/415V/440V/460V Customer Design
Function:	Tomato Paste Puree Sauce Processing	Advantage:	Automatic
Core Components:	Vacuum Concentration Pot	Final Product:	Tomato Paste
Warranty:	1-2 Year	Certificate:	ISO 9001
Material:	304 Stainless Steel

Product Overview

TOMATO PASTE PUREE SAUCE PRODUCTION LINE

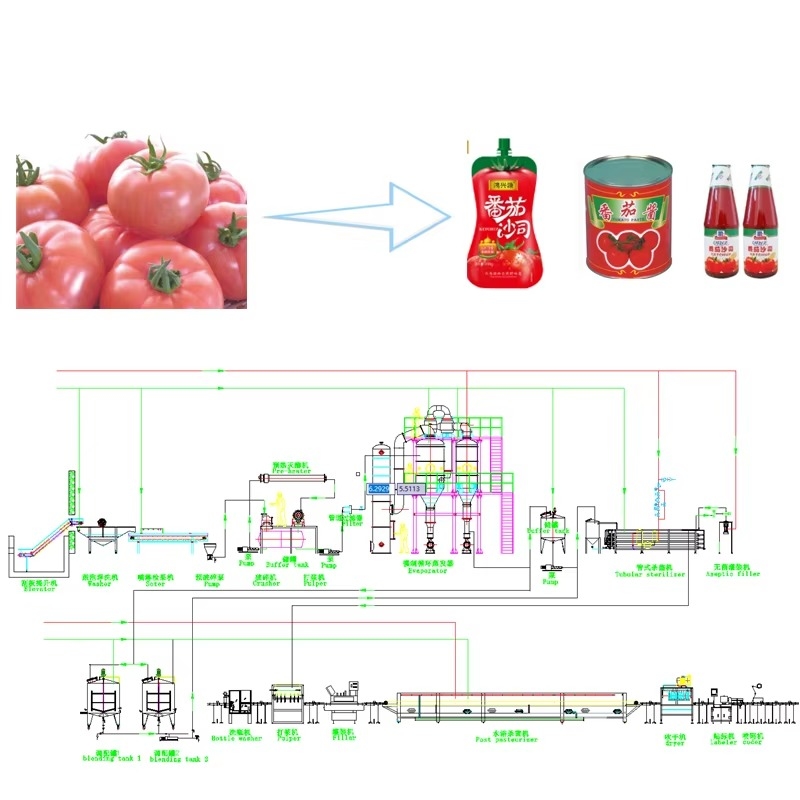

Processing flow：tomato receive -elevate-sort-pre crush-crush-pre heater-pulp-concentrate-sterilize-aseptic fill-store with normal temperature for 1 to 2 years

FEATURES AT A GLANCE

1、tomato receiving pot：

2、elevator

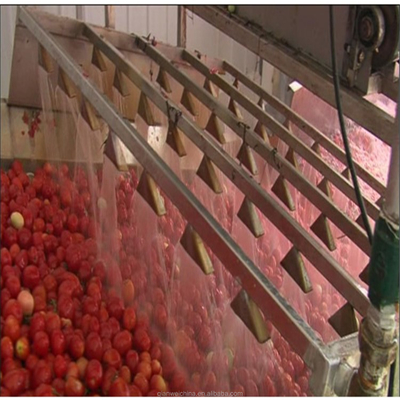

3、sorter and pre crushing machine

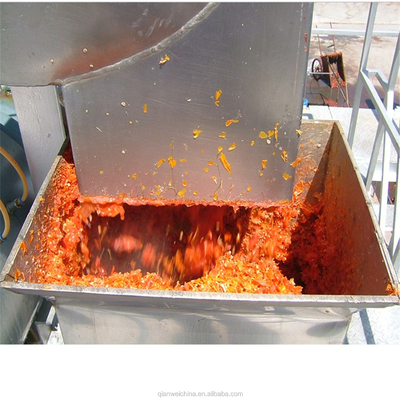

4、crushing machine 、pre heating machine and pulping machine

5、Forced external circulation vacuum concentration pot

6、tube in tube sterilization machine

7、aseptic filling machine

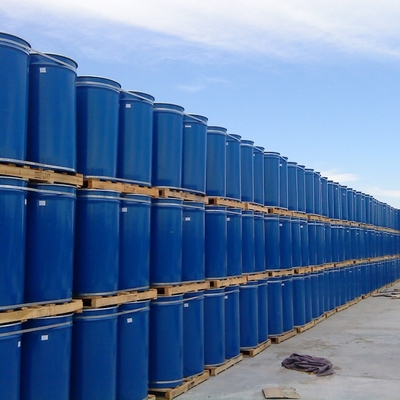

8、store with normal temperature for 1 to 2 years

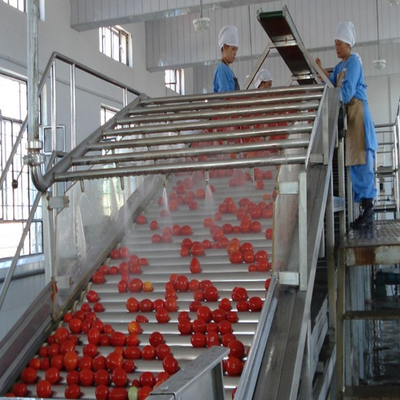

receiving

processing

tomato paste

PRODUCT SPECIFICATIONS

No	Item	Data
1	Capacity	3-50 T/H
2	Tomato Paste Kind	28-30/36-38
3	Package Style	Aseptic Tank
4	Need Steam Or Not	Yes
5	Need Compressed Air Or Not	Yes
6	Need Cooling Water Or Not	Yes
7	Shelf Time	1-2 Years
8	Machines Material	Contact Part 304

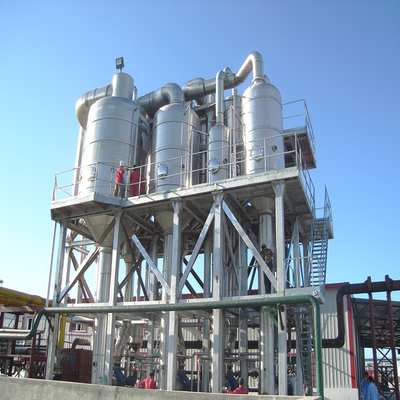

Main Machine-Concentrator

Continuous type Forced external circulation vacuum concentrating pot/single effect
concentration machine /double effect concentration machine/three effect concentration machine,auto control for temperature 、pressure、 outlet brix.

The evaporator main structure is SUS 304 stainless steel, which is composed of tubular
heater, vacuum evaporating chamber, Condensate pump, pumps (product recycle pump, feed & outlet pump, vacuum pump, water pump),
PLC auto control system, man-machine interface, valves, Instrumentation and gauges, operating platform etc.

Main Machine-Tube In Tube Sterilization Machine

Used for tomato paste 、apple jam 、mango puree、chilli jam and other high viscosity and low
liquidity fruit & vegetables jam sterilization；the prouduct use tube in tube sterilizer work with aseptic filling machine together
can be stored for 1-2 years in room temperature.

Full Automatic Configuration: It adopts the advanced computer program controlling the PLC technology.

Main Machine- Aseptic Filling Machine

Online control with sterilizer, realize CIP and SIP. This aseptic filling machine mainly
consist by the aseptic filling head (one or two ), operating system, man-machine control system, flowmeter etc. the whole process
in a sterile environment.
The man-machine interface control, flow meter, Equipped with both manual and automatic two control system
Filling rooms unique design, avoid the condensed water dripping

PRODUCT CONFIGURATION

Main Processing machines

Auxiliary Equipment

Civil Engineering

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in Xinjiang

Project in Russia

Our company

Company Profile

Kunshan Qianwei Machinery & Technology Co., Ltd. Was Established In 2011 With A Registered Capital Of 10 Million Yuan.

The Company Covers A Total Area Of 20000 Square Meters. It Has Complete Factory Buildings, Offices And Complex Buildings. The Company Consists Of Foreign Trade Dept (Kunshan), Domestic Trade Dept, Administration Dept, Design Dept, Procurement Dept, Engineering Dept, Quality Inspection Dept, After sales Dept, Finance and Accounting Dept, etc.
